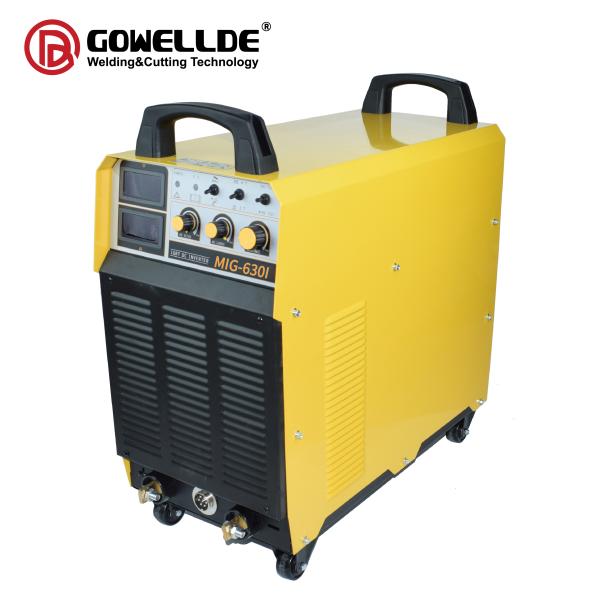

MIG MMA Welder with CO2 welding machine IGBT inverter MIG/MMA
MIG MMA Welder Features:
1 The new closed-loop control circuit achieves the formation of a
low-splash arc.
2 Adopt inverter technology, stable welding.
3 New arc control technology, arc choose is easy and efficient.
4 Wide welding current range, good performance under high-speed
welding.
5 Multiple protection functions: output short-circuit protection,
overheat protection, inverter overcurrent or overvoltage
protection.
6 The longest output cable is 50m, satisfy long distance welding.

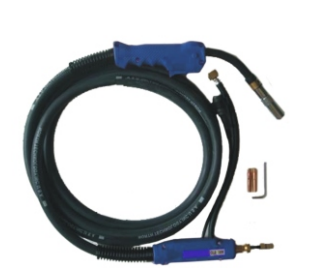

Accessories
Technical parameters
Type | MIG630I |
Control mode | IGBT inverter |
Rated input voltage | AC380V |
Input power frequency(HZ) | 50/60 |
Rated input current(A) | 82 |
Rated input capacity(KVA) | 54 |
Cable cross-sectional area | Main input(MM2) | 10 |
Power output(MM2) | 70 |
Ground(MM2) | 4 |
Rated output voltage(V) | 44 |
Duty cycle(%) | 60 |
Rated output no-load voltage(V) | 75 |
Current adjustment range(A) | 80-630 |
Voltage adjustment range(V) | 17-44 |
Power factor | 0.93 |
Enclosure rating | IP21S |
Insulation rating | F |
Cooling method | Air |
Weldable sheet thickness(MM) | 2.5-40 |
Adapt welding wire diameter(solid core)(MM) | 1.2/1.4/1.6 |
Adapt welding wire diameter(drug core)(MM) | 1.2/1.4/1.6 |
Dimensions(MM) | 620*310*650 |
Host weight(KG) | 40 |
Our factory
Our Services
1. Your inquiry related to our product & price will be replied
within 24 hours
2. Well-trained & experienced staff are to answer all your
inquiries in English
3. Working time: 8:00am ~17:30pm, Monday to Saturday. (UTC+8)
4. Customized solution & perfect after-sale service
5. For large order, engineer can be sent to your country for
on-site mainternace
instructions.
6. Our advantage: (1)Competitive price (2). Good quality (3).
Timely delivery (4) New model launch yearly(5) Own manufacturing (6) Own quality control
FAQ
1.Are you a welding machines factory or trading company?
We are welding machines manufacturer as well as a trading company
with more than 10 assembly product line and strict QC system and
equipment, so we can meet both your quantity and quality demands.
2.What makes you different from other welding machines companies?
We work in the hardware capital of China and we know most of the
welding machines factories working methods, culture, business
style, key persons and other relevant details. We look beyond a
welding machines business which is just product based. We strongly
believe that having a good positive working culture and put
together a skilled and motivated team can reflect on our welding
products and the service provided to our customers.
3.Can you make your welding machines under my brand?
Yes, we can welding machines under your logo and it has the Minimum
Order Quantity (MOQ) request..
4.I have not heard of General Welder company before, are you a new
company?
General Welder company was established since 2012 by a team of
members with welding machines exceptional knowledge and with over
10 years of experience in the welding machines Industry.
5.Can you offer welding machines for testing?
Yes, we can offer welding machines for the test.
6.What kind of welding machines warranty do you have?
We provide a 1-year warranty to most of our welding machines
product. For more information, please send the product model and
send an email to us.
