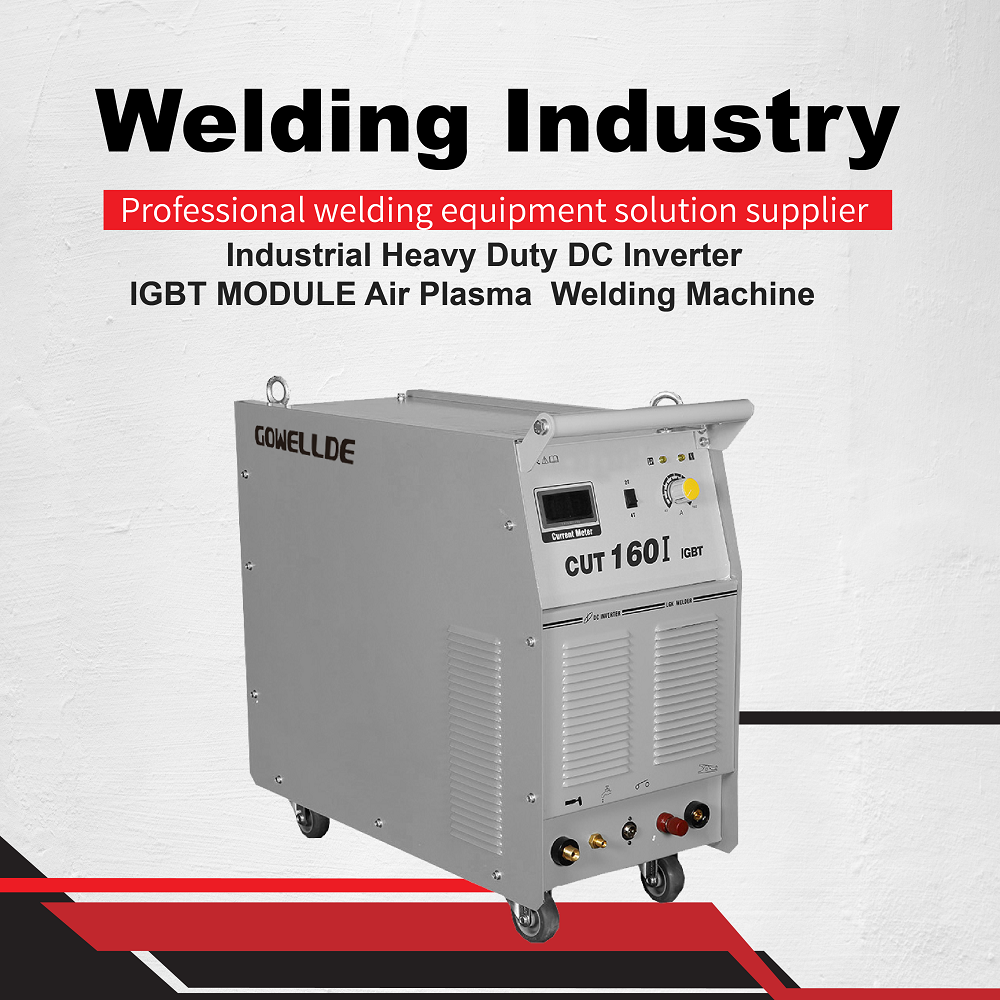

HF Portable Plasma Cutter Function Cut160I ,IP21 Cut Air Plasma
Cutting Machine Cutter Welding Machine
Welcome to visit our showroom! It's my honor to introduce you our
product.
Company Information:
Shenzhen General Welder Technology Co., Ltd, located at Shajing
Subdistrict, Bao'an district, Shenzhen city which is the core city
for the
inverter type welding and cutting machine. We focused on
developing, marketing all kinds of
welding and cutting machine and its related goods.
We have below series products:
*ARC welder series, including DIY product, light industry product,
and heavy industry product.
*TIG welder series, including TIG&ARC series, TIG pulse series,
TIG AC/DC series,
*MIG welder series, including integrated one and separated one,
also the pulse MIG machine.
*Plasma cutting machine series including DIY series and heavy
industry usage cutting machine.
*Submerge ARC welding machine.
We can also supply you the good quality spare parts of the welding
machine. And the accessories of the welding machine.
Aiming to provide the best quality product at a competitive price
for you. We want long and strong cooperation relationship with you,
not short time.
Quality goes first, Price goes later. With quality and price, We
can help your business grow up more quickly.
Last year our overseas market turnover is more than 30 million. We
are aiming to do double this year.
Welcome, my friend. We are here and waiting for your inquiry.
Thanks and Best regards!
| FEATURES |
| .Built in Air Pump IGBT Air Plasma Cuter,Cutting Machine with MMA
Function |
| .Using advanced IGBT module technology and soft-switching
technology |
| ·Cutting capacity increases 1.8 times higher in cutting speed
comparing with flame cutter. |
| · Advamced pilot arc system design,100% arc start,arc continuously |
· Bulit-in over current,over heat,less voltage,lack of phase
protections,more safety on operation. |
| ·Suitable for cutting stainless steel, copper, iron and aluminum
metal etc. |
| ·Simple operation and smooth cutting surface. |
| ·HF touched Arc-starting cutting |
| Type | CUT160I |
| control mode | IGBT inverter |
| Rated input voltage | AC380V |
| Rated input current(A) | 40 |
| Rated input capacity(KVA) | 26.3 |
| Rated output current(A) | 160 |
| Cable cross-sectional area | mains input(mm2) | 8 |
| power output(mm2) | 25 |
| ground wire(mm2) | 4 |
| Rated output voltage(V) | 144 |
| Duty cycle(%) | 100 |
| Rated no-load voltage(V) | 315 |
| Current adjustment range(A) | 40-160 |
| Quality cutting thickness (carbon steel)(mm) | 1~35 |
| Maximum cutting thickness (carbon steel)(mm) | 55 |
| Using plasma gas | Compressed air |
| Gas pressure range(MPa) | 0.4-0.6 |
| Applicable air compressor capacity(m3) | ≥0.6 |
| Arc ignition mode | High pressure non-contact |
| Enclosure rating | IP21S |
| Insulation rating | F |
| Cooling method | Air |
| Power factor | 0.93 |
| Dimensions(mm) | 820*390*940 |
| Host weight(KG) | 70 |
