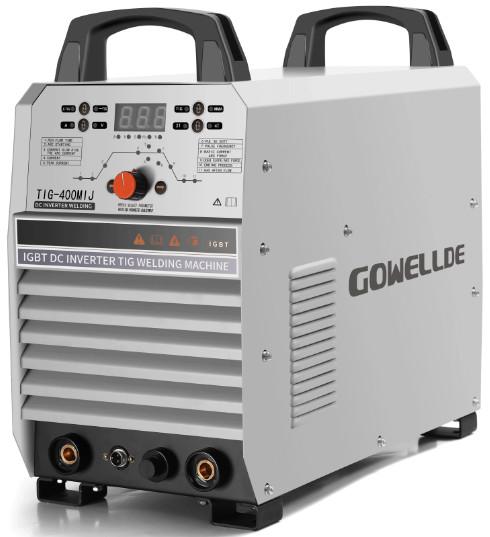

TIG400MIJ heavy duty high frequency pulse welding INVERTER TIG
aluminum welding machine
1. The digitization control circuit, full functions and regulate
easily.
2. DC pulse argon arc welding, DC argon arc welding, DC ARC welding
three functions.
3. Mainly use for the welding of stainless steel, mild steel,
high-strength steel, copper and the other alloys materials.
4. Applicate extensively with aerospace, locomotive, ship, press
container, petrochemical, motorbike, bicycle, hydropower, steel
wood furniture fields and so on.
5. Digitization inverter technology, greatly improve the whole
machine's performance and reliability.
6. Welding control exact, high arcing success rate.
7. Intuitive and clear digital display.
8. Self-lock or not self-lock functions.
9. Overheat or lack voltage automatic protective functions.
10. Excellent MMA function.
Technical Parameter:
| Type | TIG400MIJ |
| control mode | IGBT inverter |
| Rated input voltage | AC380V |
| Rated input capacity(KVA) | 18.4 |
| Cable cross-sectional area | mains input(mm2) | 6 |
| power output(mm2) | 50 |
| ground wire(mm2) | 4 |
| Duty cycle(%) | 60 |
| Rated output no-load voltage(V) | 72 |
| Output current adjustment range(A) | 5-400 |
| Starting current adjustment range(A) | 10-160 |
| Pulse frequency(HZ) | 0.2-50 |
| Arc ignition mode | High frequency arc striking |
| Enclosure rating | IP21S |
| Insulation rating | F |
| Cooling method | Air |
| Power factor | 0.93 |
| Dimensions(mm) | 560*290*530 |
| Host weight(KG) | 25 |
Advantages Of Electric Welding Machine:
Electric welding machine uses electric energy, which can be
converted into heat energy instantaneously, electric is very
common, electric welding machine is suitable for working in dry
environment, does not need too many requirements, because the
volume is small, the operation is simple, the use is convenient,
the speed is faster, the advantages such as the strength of welds
after welding are widely used in various fields, especially for
products requiring high strength, which can instantly connect the
same metal material (or dissimilar metal, but different welding
method) permanently, after heat treatment, the weld is as strong as
the base metal and sealed well, which solves the problem of sealing
and strength for the manufacture of storage gas and liquid
containers.
Introduction to the principle of electric welding machine:
The electric welding machine, which uses inductance to make contact
and the object to be touched to complete the welding function, is
actually an extremely high power transformer, which can complete
the conversion of electric energy to thermal energy in an instant,
with the advantages of simple operation, convenient carrying, fast
speed and strong performance, it has been widely used, whether in
actual use or in the school laboratory.
FAQ:
Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10
assembly product line and strict QC system and equipment, so we can
meet both your quantity and quality demands.
2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order
confirmed, the samples fee will be regressed.
3. MOQ:
Generally if you choose the different products,our minimum order
qty.also will be different.
4. Payment:
Acturally, payment would be preferred: Normally we choose in T/T,
usually is 30% deposit and pay the balance before shipment.L/C,
Western Union is fine
5.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port
after order confirmed, it's about 30 days.
6.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and
ISO9002 authentication. Quality makes us who we are today. We focus
on the quality from the very beginning to the end.
